PISHW-240
Alcohol Soluble Self-Bonding Enameled Copper Round Wire – Class 240, Aromatic Polyimide, Specially for VCM & High-Temperature Precision Coils
PISHW-240 is a premium aromatic polyimide self-bonding enameled copper wire, specifically engineered for Voice Coil Motor (VCM) and high-temperature precision coil applications where alcohol solvent bonding is the preferred method.
The alcohol-soluble bonding layer allows coils to be bonded by dipping or spraying with solvent, eliminating the need for oven heating in many applications. Combined with Class 240 aromatic polyimide insulation, this wire offers the highest thermal endurance available in the industry – making it ideal for VCM actuators, camera autofocus systems, and other precision devices operating in demanding environments.
With a thermal class of 240°C, cut-through temperature of 450°C, and heat shock resistance up to 260°C, PISHW-240 delivers exceptional reliability in applications where failure is not an option.
Key Features & Benefits
Activated by alcohol dipping or spraying – no oven heating required, ideal for delicate VCM and precision coil assemblies.
Highest continuous operating temperature – 240°C, with cut-through at 450°C and heat shock at 260°C.
Specifically designed for Voice Coil Motors in camera autofocus, optical image stabilization, and precision positioning systems.
Exceptional resistance to thermal aging, radiation, oxidation, and chemicals.
Self-bonding layer ensures coils remain rigid and stable after solvent treatment, even at elevated temperatures.
Manufactured to ISO 9001 and IATF 16949 standards, meeting NEMA, JIS, IEC, and GB/T requirements.
Product Parameters

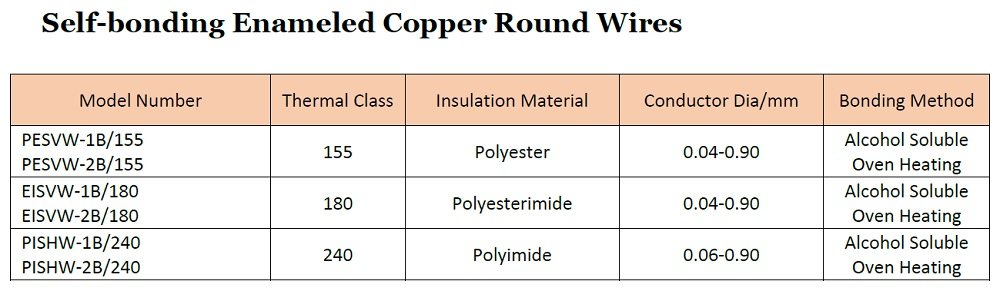

| Model Number | Conductor Material | Diameter (mm) | Bonding Method | Thermal Class | Film Grade |
|---|---|---|---|---|---|
| PISHW-1B/240 | Copper | 0.06 – 0.90 | Alcohol Soluble | 240 | 1B |
| PISHW-2B/240 | Copper | 0.06 – 0.90 | Alcohol Soluble | 240 | 2B |
💡 Key Technical Data: Cut-through Temperature: 450°C · Heat Shock: 260°C · Standards: NEMA, JIS, IEC, GB/T
※ Custom conductor diameters and film grades are available upon request.
Dimensional Specifications
| Conductor Dia. (mm) | Tolerance (±mm) | Min. Insulating Film Increase (mm) 1B / 2B | Min. Bonding Film Increase (mm) | Max. Outside Dia. (mm) 1B / 2B | Copper Resistance (Ω/m) Min / Max |
|---|---|---|---|---|---|
| 0.06 | 0.003 | 0.006 / 0.012 | 0.005 | 0.082 / 0.088 | 5.437 / 6.756 |
| 0.08 | 0.003 | 0.007 / 0.014 | 0.007 | 0.108 / 0.115 | 3.133 / 3.703 |
| 0.10 | 0.003 | 0.008 / 0.016 | 0.007 | 0.128 / 0.135 | 2.034 / 2.333 |
| 0.15 | 0.003 | 0.012 / 0.023 | 0.010 | 0.182 / 0.193 | 0.9219 / 1.015 |
| 0.20 | 0.003 | 0.014 / 0.027 | 0.011 | 0.238 / 0.250 | 0.5237 / 0.5657 |
| 0.30 | 0.005 | 0.019 / 0.035 | 0.014 | 0.349 / 0.363 | 0.2230 / 0.2522 |
| 0.40 | 0.005 | 0.021 / 0.040 | 0.016 | 0.450 / 0.471 | 0.1316 / 0.1407 |
| 0.50 | 0.005 | 0.024 / 0.045 | 0.017 | 0.556 / 0.579 | 0.08462 / 0.08959 |
| 0.60 | 0.006 | 0.027 / 0.050 | 0.018 | 0.664 / 0.687 | 0.05876 / 0.06222 |
| 0.70 | 0.007 | 0.028 / 0.053 | 0.019 | 0.776 / 0.792 | 0.04317 / 0.04570 |
| 0.80 | 0.008 | 0.030 / 0.056 | 0.020 | 0.882 / 0.897 | 0.03305 / 0.0350 |
| 0.90 | 0.009 | 0.032 / 0.060 | 0.020 | 0.991 / 1.002 | 0.02612 / 0.02765 |
※ Full dimensional table including all diameters from 0.06 mm to 0.90 mm is available upon request. Contact us for complete data.
Typical Applications
PISHW-240 is widely used in applications requiring precision coil winding, high-temperature resistance, and reliable solvent bonding:
Manufacturing Facilities
Packaging & Transportation

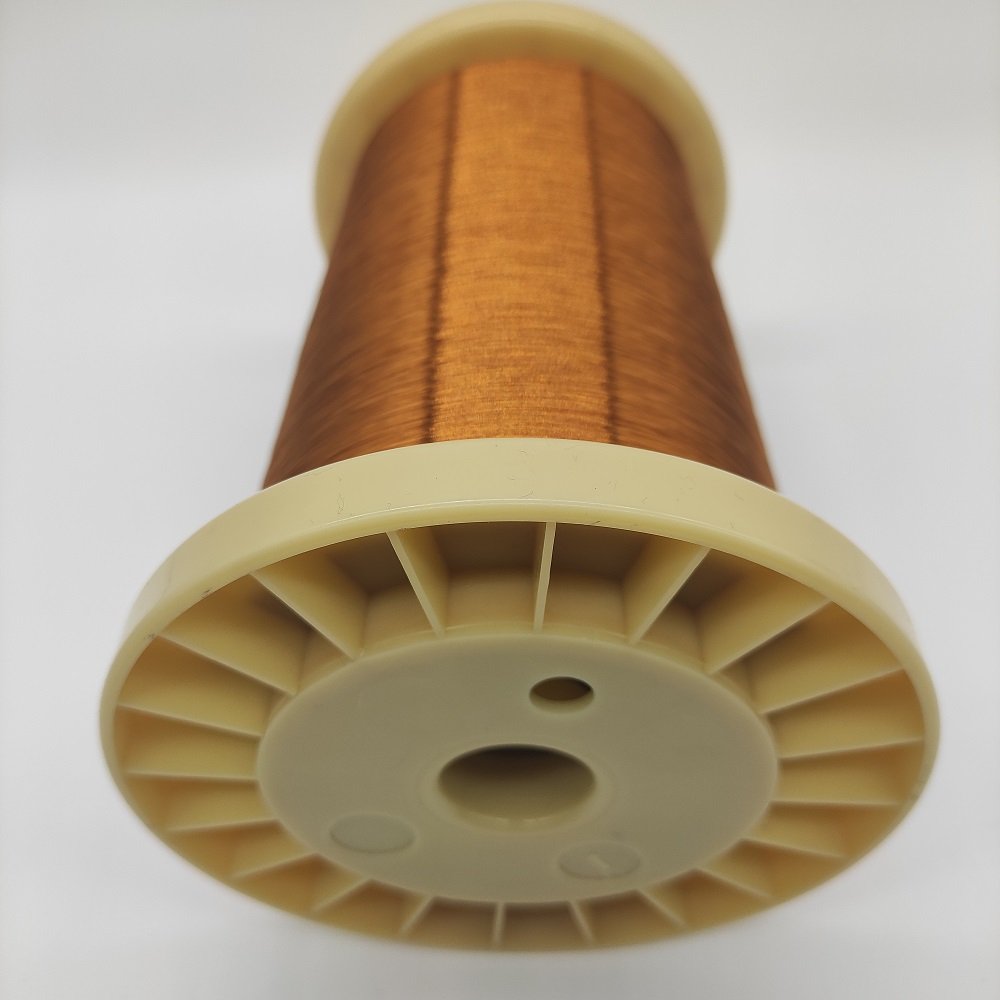

| Spool Type | d1 (mm) | d4 (mm) | l1 (mm) | l2 (mm) | d14 (mm) | Spool Weight (g) | Net Wire Weight (kg) | Recommended Wire Size (mm) | Spools per Box |
|---|---|---|---|---|---|---|---|---|---|
| PT-2 | 105 | 20 | 170 | 150 | 115 | 160 | 3 | 0.002 – 0.040 | 8 |
| PT-4 | 124 | 26.5 | 200 | 170 | 140 | 240 | 6 | 0.040 – 0.250 | 4 |
| PT-10 | 160 | 30 | 230 | 200 | 180 | 420 | 12 | 0.250 – 0.900 | 2 |
| PT-15 | 180 | 30 | 230 | 200 | 200 | 560 | 18 | 0.250 – 0.900 | 1 |
| PT-25 | 215 | 32 | 280 | 250 | 230 | 780 | 28 | 0.400 – 2.500 | 1 |
| PT-45 | 236 | 100 | 400 | 335 | 250 | 2150 | 45 | 0.400 – 2.500 | 1 |
| PT-60 | 270 | 45 | 400 | 350 | 300 | 2750 | 65 | 0.400 – 2.500 | 1 |
| PT-90 | 300 | 100 | 500 | 425 | 315 | 3900 | 90 | 1.000 – 5.000 | 1 |
Get a Quote
Need PISHW-240 for your VCM or high-temperature precision coil application?
Contact our engineering team for samples, technical datasheets, or a customized quotation.
📩 Contact Our Team
🔍 View All Products
📞 Tel: +86-13621982708 | 🌐 www.chingcung.com

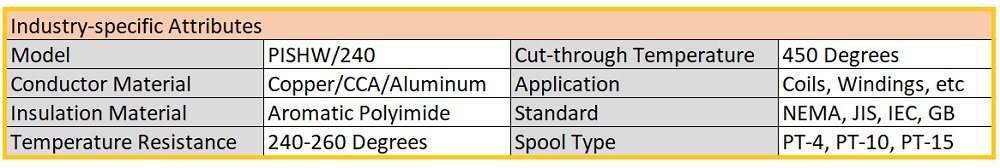

| Model Number | PISHW-1B/240, PISHW-2B/240 |
|---|---|
| Material | Copper |
| Color | Natural |
| Application | Voice Coils, Motor Windings, Frameless Coils, VCM, etc. |
| Thermal Class | Class 240 (Temperature Resistance 240-260 centigrade degrees) |
| Standard | NEMA, IEC, GB, JIS |
| Bond Methods | Alcohol Soluble (Oven Heating, Energized Heating) |
| HS Code | 8544110000 |
| Conductor Size | 0.06 – 0.90 mm in diameter. |
| Conductor Type | Solid |
| Insulation Film | Aromatic Polyimide |
| Cut-through | 450 centigrade degrees |
| Conductor Diameter | 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm, 0.17mm, 0.18mm, 0.19mm, 0.20mm, 0.21mm, 0.22mm, 0.23mm, 0.24mm, 0.25mm, 0.26mm, 0.27mm, 0.28mm, 0.29mm, 0.30mm, 0.31mm, 0.32mm, 0.33mm, 0.34mm, 0.35mm, 0.36mm, 0.37mm, 0.38mm, 0.39mm, 0.40mm, 0.41mm, 0.42mm, 0.43mm, 0.44mm, 0.45mm, 0.46mm, 0.47mm, 0.48mm, 0.49mm, 0.50mm, 0.51mm, 0.52mm, 0.53mm, 0.54mm, 0.55mm, 0.56mm, 0.57mm, 0.58mm, 0.59mm, 0.60mm |
