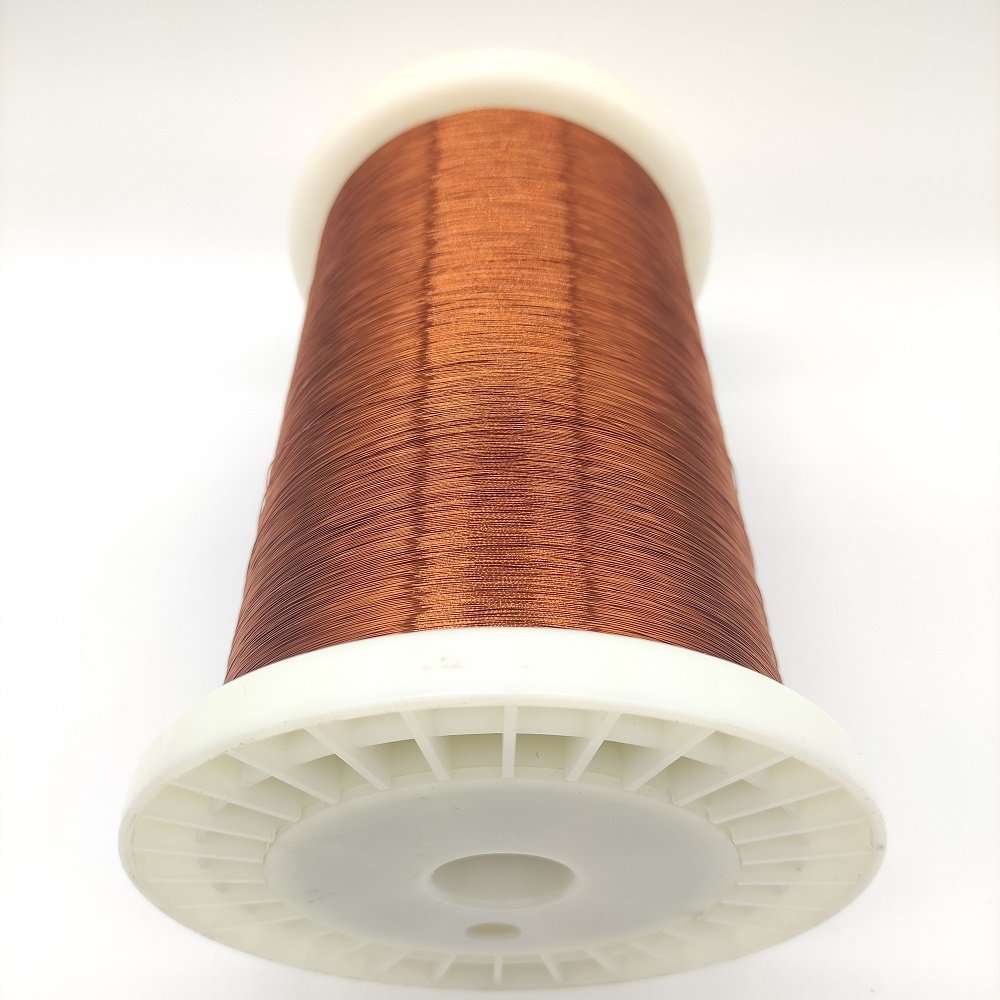

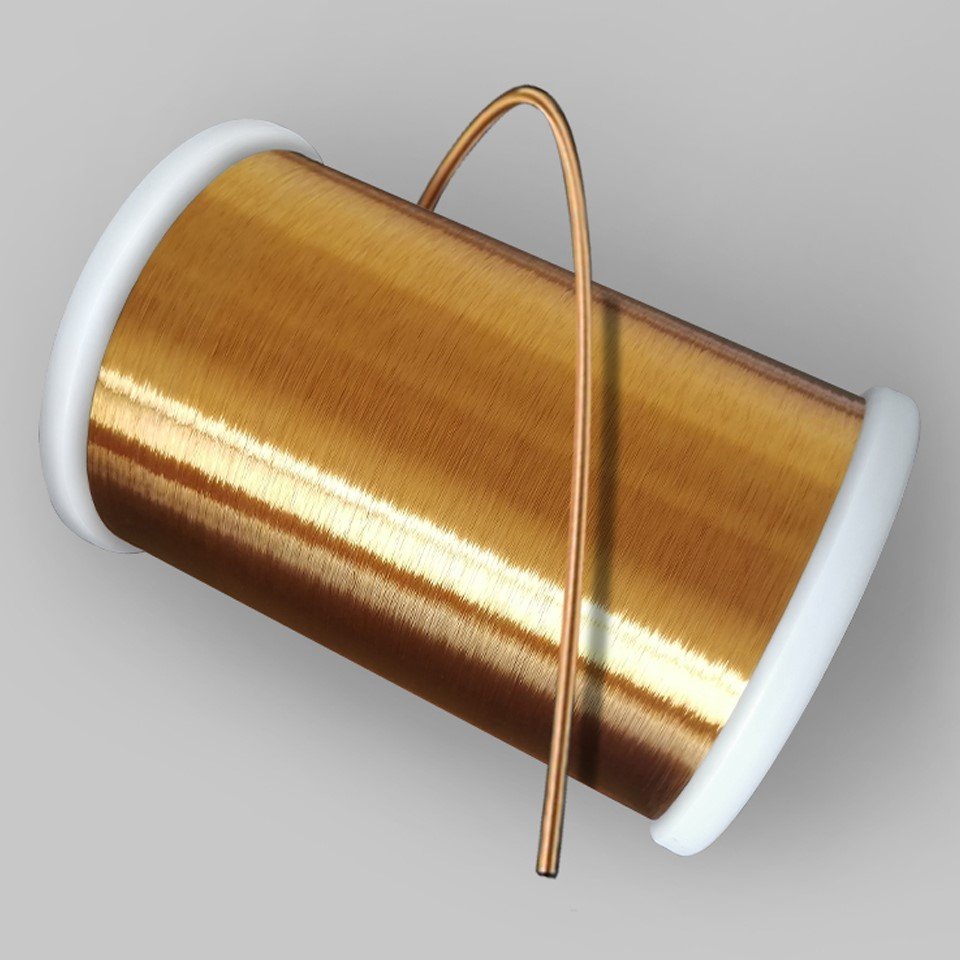

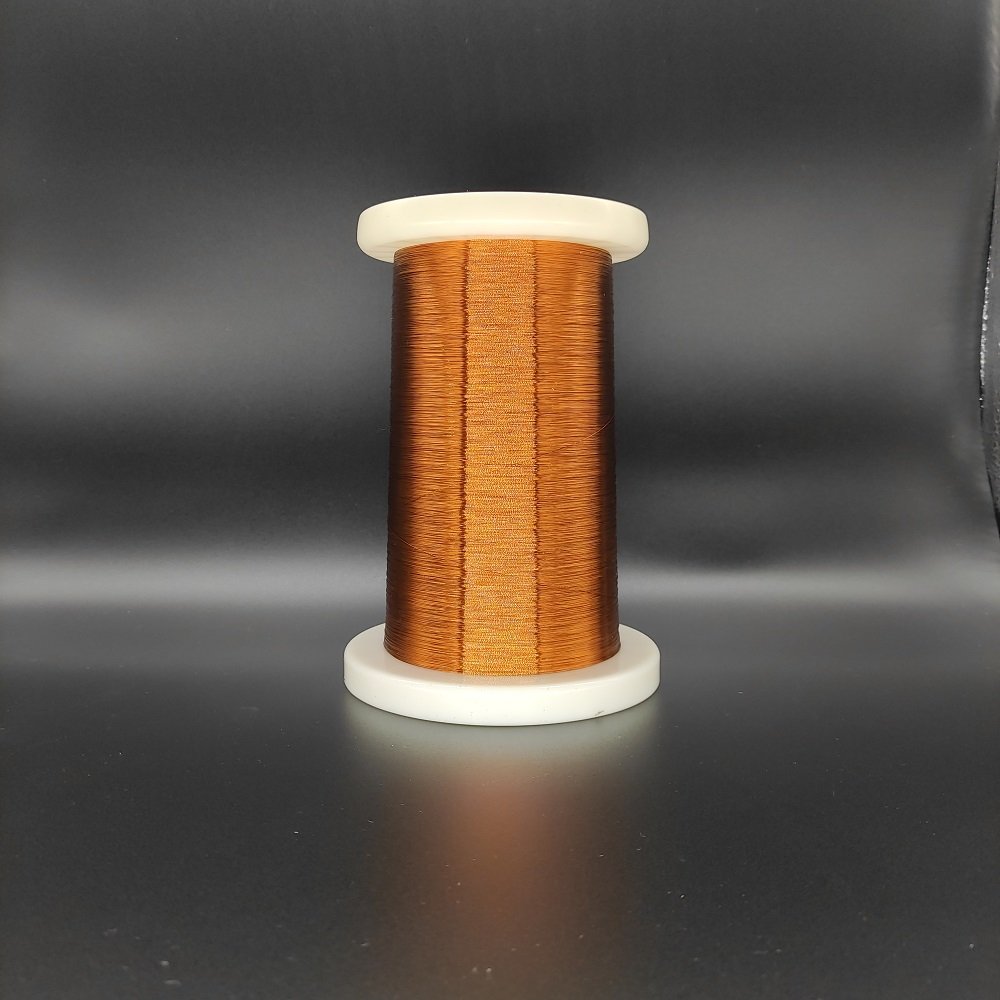

EISVW-180 Alcohol Soluble Self-Bonding Enameled Copper Round Wire – Class 180
$35.00 per kg
Real-Time Carrier Rates!
- Gauge Accuracy Guarantee
- No Hassle Refunds
- Price-Lock Deposit Protection
EISVW-180
Alcohol Soluble Self-Bonding Enameled Copper Round Wire – Class 180, Polyesterimide, Specially for Voice Coils & Precision Coils
EISVW-180 is a high-performance polyesterimide self-bonding enameled copper wire, specifically engineered for voice coil and precision coil applications where alcohol solvent bonding is the preferred method.
The alcohol-soluble bonding layer allows coils to be bonded by dipping or spraying with solvent, eliminating the need for oven heating in many applications. This makes EISVW-180 ideal for voice coils in speakers, microphones, headphones, and other precision audio devices where delicate coil formation is required.
With a thermal class of 180°C (Class H) and polyesterimide insulation, this wire offers excellent thermal aging resistance and mechanical strength, ensuring reliable performance in demanding audio and precision coil applications.
Key Features & Benefits
Activated by alcohol dipping or spraying – no oven heating required, ideal for delicate voice coil assemblies.
Continuous operation at 180°C with excellent thermal aging resistance.
Specifically designed for speaker voice coils, microphones, headphones, and precision audio applications.
Available from 0.04 mm to 0.90 mm to suit various voice coil and precision winding specifications.
Self-bonding layer ensures coils remain rigid and stable after solvent treatment.
Manufactured to ISO 9001 and IATF 16949 standards.
Product Parameters
| Model Number | Conductor Material | Diameter (mm) | Bonding Method | Thermal Class | Film Grade |
|---|---|---|---|---|---|
| EISVW-1B/180 | Copper | 0.04 – 0.90 | Alcohol Soluble | 180 | 1B |
| EISVW-2B/180 | Copper | 0.04 – 0.90 | Alcohol Soluble | 180 | 2B |
💡 Key Technical Data: Cut-through Temperature: 300°C · Standards: NEMA, JIS, IEC, GB/T
※ Custom conductor diameters and film grades are available upon request.
Dimensional Specifications
| Conductor Dia. (mm) | Tolerance (±mm) | Min. Insulating Film Increase (mm) 1B / 2B | Min. Bonding Film Increase (mm) | Max. Outside Dia. (mm) 1B / 2B | Copper Resistance (Ω/m) Min / Max |
|---|---|---|---|---|---|
| 0.04 | 0.003 | 0.004 / 0.008 | 0.004 | 0.062 / 0.068 | 12.869 / 15.634 |
| 0.05 | 0.003 | 0.005 / 0.010 | 0.005 | 0.072 / 0.078 | 7.682 / 9.937 |
| 0.06 | 0.003 | 0.006 / 0.012 | 0.005 | 0.082 / 0.088 | 5.437 / 6.756 |
| 0.08 | 0.003 | 0.007 / 0.014 | 0.007 | 0.108 / 0.115 | 3.133 / 3.703 |
| 0.10 | 0.003 | 0.008 / 0.016 | 0.007 | 0.128 / 0.135 | 2.034 / 2.333 |
| 0.15 | 0.003 | 0.012 / 0.023 | 0.010 | 0.182 / 0.193 | 0.9219 / 1.015 |
| 0.20 | 0.003 | 0.014 / 0.027 | 0.011 | 0.238 / 0.250 | 0.5237 / 0.5657 |
| 0.30 | 0.005 | 0.019 / 0.035 | 0.014 | 0.349 / 0.363 | 0.2230 / 0.2522 |
| 0.40 | 0.005 | 0.021 / 0.040 | 0.016 | 0.450 / 0.471 | 0.1316 / 0.1407 |
| 0.50 | 0.005 | 0.024 / 0.045 | 0.017 | 0.556 / 0.579 | 0.08462 / 0.08959 |
| 0.60 | 0.006 | 0.027 / 0.050 | 0.018 | 0.664 / 0.687 | 0.05876 / 0.06222 |
| 0.70 | 0.007 | 0.028 / 0.053 | 0.019 | 0.776 / 0.792 | 0.04317 / 0.04570 |
| 0.80 | 0.008 | 0.030 / 0.056 | 0.020 | 0.882 / 0.897 | 0.03305 / 0.0350 |
| 0.90 | 0.009 | 0.032 / 0.060 | 0.020 | 0.991 / 1.002 | 0.02612 / 0.02765 |
※ Full dimensional table including all diameters from 0.04 mm to 0.90 mm is available upon request. Contact us for complete data.
Typical Applications
EISVW-180 is widely used in applications requiring precision coil winding and reliable solvent bonding:
Manufacturing Facilities

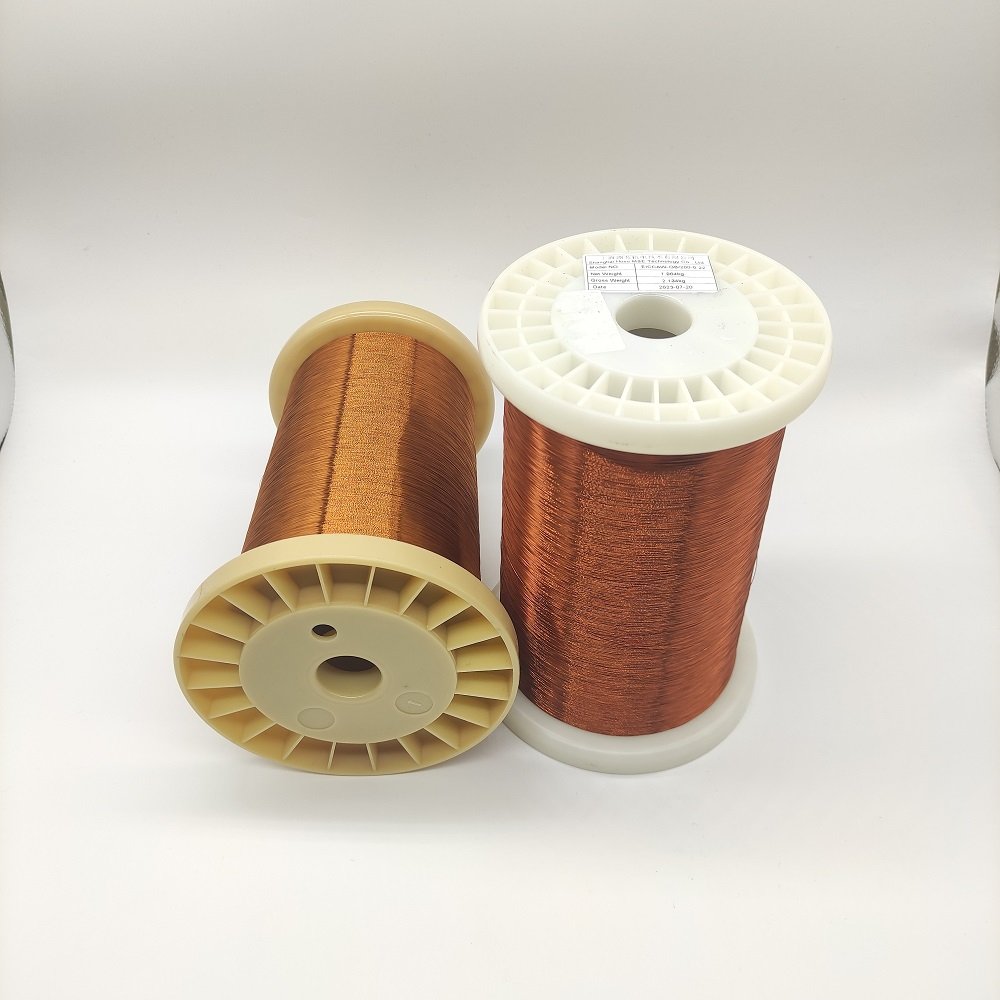

Packaging & Transportation
| Spool Type | d1 (mm) | d4 (mm) | l1 (mm) | l2 (mm) | d14 (mm) | Spool Weight (g) | Net Wire Weight (kg) | Recommended Wire Size (mm) | Spools per Box |
|---|---|---|---|---|---|---|---|---|---|
| PT-2 | 105 | 20 | 170 | 150 | 115 | 160 | 3 | 0.002 – 0.040 | 8 |
| PT-4 | 124 | 26.5 | 200 | 170 | 140 | 240 | 6 | 0.040 – 0.250 | 4 |
| PT-10 | 160 | 30 | 230 | 200 | 180 | 420 | 12 | 0.250 – 0.900 | 2 |
| PT-15 | 180 | 30 | 230 | 200 | 200 | 560 | 18 | 0.250 – 0.900 | 1 |
| PT-25 | 215 | 32 | 280 | 250 | 230 | 780 | 28 | 0.400 – 2.500 | 1 |
| PT-45 | 236 | 100 | 400 | 335 | 250 | 2150 | 45 | 0.400 – 2.500 | 1 |
| PT-60 | 270 | 45 | 400 | 350 | 300 | 2750 | 65 | 0.400 – 2.500 | 1 |
| PT-90 | 300 | 100 | 500 | 425 | 315 | 3900 | 90 | 1.000 – 5.000 | 1 |
Get a Quote
Need EISVW-180 for your voice coil or precision winding application?
Contact our engineering team for samples, technical datasheets, or a customized quotation.
📩 Contact Our Team
🔍 View All Products
📞 Tel: +86-13621982708 | 🌐 www.chingcung.com
| Model Number | EISVW-1B/180, EISVW-2B/180 |
|---|---|
| Material | Copper |
| Thermal Class | Class 180 (Temperature Resistance 180-200 centigrade degrees) |
| Standard | NEMA, IEC, GB, JIS |
| Color | Natural |
| Application | Voice Coils, Motor Windings, Frameless Coils, VCM, etc. |
| Bond Methods | Alcohol Soluble (Oven Heating, Energized Heating) |
| HS Code | 8544110000 |
| Conductor Size | 0.04 – 0.90 mm in diameter. |
| Conductor Type | Solid |
| Insulation Film | Polyesterimide |
| Cut-through | 300 centigrade degrees |
| Conductor Diameter | 0.06mm, 0.07mm, 0.08mm, 0.09mm, 0.10mm, 0.11mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm, 0.17mm, 0.18mm, 0.19mm, 0.20mm, 0.21mm, 0.22mm, 0.23mm, 0.24mm, 0.25mm, 0.26mm, 0.27mm, 0.28mm, 0.29mm, 0.30mm, 0.31mm, 0.32mm, 0.33mm, 0.34mm, 0.35mm, 0.36mm, 0.37mm, 0.38mm, 0.39mm, 0.40mm, 0.41mm, 0.42mm, 0.43mm, 0.44mm, 0.45mm, 0.46mm, 0.47mm, 0.48mm, 0.49mm, 0.50mm, 0.51mm, 0.52mm, 0.53mm, 0.54mm, 0.55mm |
