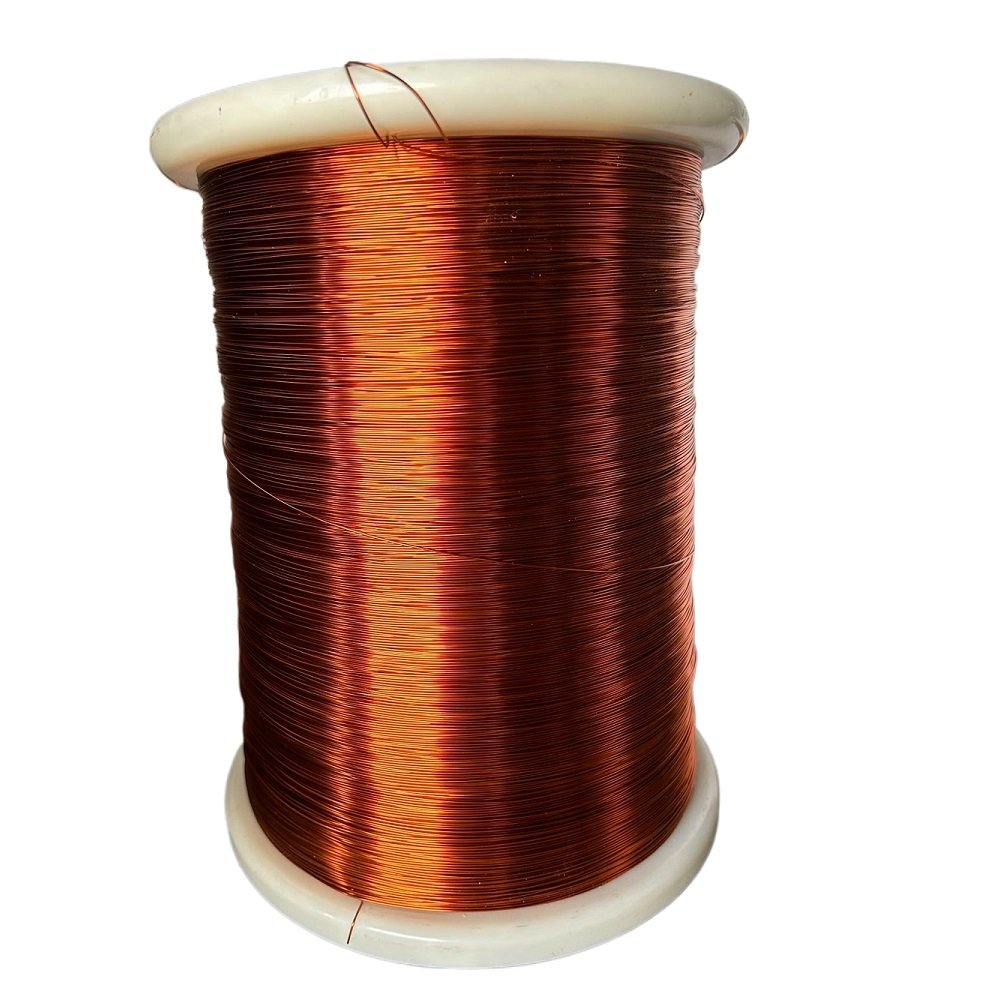

Q(ZY/XY)-200 Polyamideimide Composite Polyesterimide Enamelled Copper Round Wire – Class 200
$20.00 per kg
Real-Time Carrier Rates!
- Gauge Accuracy Guarantee
- No Hassle Refunds
- Price-Lock Deposit Protection
Q(ZY/XY)-200
Polyamideimide Composite Polyesterimide Enamelled Copper Round Wire – Class 200, Superior Refrigerant Resistance for Hermetic Motors
Q(ZY/XY)-200 is a premium polyamideimide composite polyesterimide enameled copper wire featuring a dual-layer insulation system. The base coat consists of modified polyesterimide resin, while the outer coat is a high-performance polyamideimide (PAI) layer – combining the excellent thermal properties of polyesterimide with the outstanding abrasion resistance, chemical inertness, and refrigerant compatibility of polyamideimide.
This unique composite structure is specifically engineered for hermetic motor applications, where prolonged exposure to refrigerants (such as R134a, R410A, R32) and lubricating oils is common. Unlike single-coated wires, it ensures long-term reliability under extreme operating conditions.
With a thermal class of 200°C (Class N), heat shock resistance up to 220°C, and a cut-through temperature of 320°C, this wire delivers exceptional performance in the most demanding motor applications.
Key Features & Benefits
Excellent stability when exposed to HFCs (R134a, R410A, R32), HCFCs, and CFCs – ideal for sealed compressors in AC and refrigeration systems.
The PAI topcoat provides exceptional abrasion resistance and surface lubricity, reducing scrap rates during high-speed automatic winding.
Rated for continuous operation at 200°C with a cut-through temperature exceeding 320°C, offering a safety margin for overload conditions.
High breakdown voltage and stable insulation resistance across a wide temperature range (-40°C to 220°C).
Passed rigorous accelerated aging tests in sealed tube environments with R134a, R410A, R32, and R290 refrigerants combined with POE and PVE lubricating oils.
Meets IEC 60317-13, NEMA MW35-C, JIS C3202, and GB/T 6109.20 standards.
Product Parameters
| Model Number | Conductor Material | Thermal Class | Insulation Structure | Diameter (mm) | Film Grade |
|---|---|---|---|---|---|
| Q(ZY/XY)-1/200 | Copper | 200 | PEI + PAI (Composite) | 0.10 – 4.00 | 1 (Single Build) |
| Q(ZY/XY)-2/200 | Copper | 200 | PEI + PAI (Composite) | 0.10 – 4.00 | 2 (Heavy Build) |
| Q(ZY/XY)-3/200 | Copper | 200 | PEI + PAI (Composite) | 0.10 – 4.00 | 3 (Triple Build) |
💡 Key Technical Data: Heat Shock: 220°C · Cut-through Temperature: 320°C · Standards: IEC 60317-13, NEMA MW35-C, GB/T 6109.20
※ Custom conductor diameters and film grades are available upon request. Aluminum and CCA versions also available.
Dimensional Specifications
以下为Grade 2（Heavy Build）代表性尺寸。Grade 1和Grade 3可应要求提供。完整尺寸表（0.10mm–4.00mm）请联系我们索取。
| Conductor Dia. (mm) | Tolerance (±mm) | Min. Film Increase (mm) | Max. Overall Dia. (mm) | Breakdown Voltage (Min) |
|---|---|---|---|---|
| 0.20 | ±0.003 | 0.027 | 0.239 | ≥ 3500V |
| 0.35 | ±0.005 | 0.038 | 0.406 | ≥ 4300V |
| 0.50 | ±0.005 | 0.045 | 0.566 | ≥ 4600V |
| 0.80 | ±0.008 | 0.056 | 0.884 | ≥ 4900V |
| 1.00 | ±0.010 | 0.063 | 1.094 | ≥ 5000V |
| 1.20 | ±0.013 | 0.067 | 1.344 | ≥ 5000V |
| 1.60 | ±0.016 | 0.071 | 1.706 | ≥ 5000V |
| 2.00 | ±0.020 | 0.075 | 2.112 | ≥ 5000V |
※ Full dimensional table including all diameters from 0.10 mm to 4.00 mm is available upon request.
Typical Applications
Q(ZY/XY)-200 is widely used in applications requiring superior refrigerant resistance and high thermal stability:
Manufacturing Facilities
Packaging & Transportation
| Spool Type | d1 (mm) | d4 (mm) | l1 (mm) | l2 (mm) | d14 (mm) | Spool Weight (g) | Net Wire Weight (kg) | Recommended Wire Size (mm) | Spools per Box |
|---|---|---|---|---|---|---|---|---|---|
| PT-2 | 105 | 20 | 170 | 150 | 115 | 160 | 3 | 0.002 – 0.040 | 8 |
| PT-4 | 124 | 26.5 | 200 | 170 | 140 | 240 | 6 | 0.040 – 0.250 | 4 |
| PT-10 | 160 | 30 | 230 | 200 | 180 | 420 | 12 | 0.250 – 0.900 | 2 |
| PT-15 | 180 | 30 | 230 | 200 | 200 | 560 | 18 | 0.250 – 0.900 | 1 |
| PT-25 | 215 | 32 | 280 | 250 | 230 | 780 | 28 | 0.400 – 2.500 | 1 |
| PT-45 | 236 | 100 | 400 | 335 | 250 | 2150 | 45 | 0.400 – 2.500 | 1 |
| PT-60 | 270 | 45 | 400 | 350 | 300 | 2750 | 65 | 0.400 – 2.500 | 1 |
| PT-90 | 300 | 100 | 500 | 425 | 315 | 3900 | 90 | 1.000 – 5.000 | 1 |
Why Choose CHINGCUNG for Q(ZY/XY)-200?
- In-House Manufacturing – Self-owned factories with automated production lines, monthly capacity of 100+ tons for specialty wires.
- Global Compliance – Strict adherence to IEC 60317-13, NEMA MW35-C, JIS C3202, and GB/T 6109.20 standards.
- Refrigerant Compatibility Certified – Verified through rigorous accelerated aging tests with R134a, R410A, R32, and R290 refrigerants.
- Flexible MOQ – Sample orders (15 kg) welcome for qualification testing; bulk orders supported with 15-20 working days lead time.
- Logistics Advantage – Located in Shanghai with strategic freight partners for efficient global delivery (Air/Sea/Express).
Get a Quote
Need Q(ZY/XY)-200 for your hermetic motor or refrigeration application?
Contact our engineering team for free samples, technical datasheets, or a customized quotation.
📩 Request a Sample
🔍 View All Products
📞 Tel: +86-13621982708 | 🌐 www.chingcung.com
| Material | Copper |
|---|---|
| Model Number | Q(ZY/XY)-2/200, Q(ZY/XY)-1/200, Q(ZY/XY)-3/200 |
| Color | Natural |
| Conductor Size | Diameter 0.10–4.00 mm |
| HS Code | 8544110000 |
| Conductor Type | Solid |
| Conductor Diameter | 0.71mm, 0.72mm, 0.73mm, 0.74mm, 0.75mm, 0.76mm, 0.77mm, 0.78mm, 0.79mm, 0.80mm, 0.81mm, 0.82mm, 0.83mm, 0.84mm, 0.85mm, 0.86mm, 0.87mm, 0.88mm, 0.89mm, 0.90mm, 0.91mm, 0.92mm, 0.93mm, 0.94mm, 0.95mm, 0.96mm, 0.97mm, 0.98mm, 0.99mm, 1.00mm, 1.01mm, 1.02mm, 1.03mm, 1.04mm, 1.05mm, 1.06mm, 1.07mm, 1.08mm, 1.09mm, 1.10mm, 1.11mm, 1.12mm, 1.13mm, 1.14mm, 1.15mm, 1.16mm, 1.17mm, 1.18mm, 1.19mm, 1.20mm |
